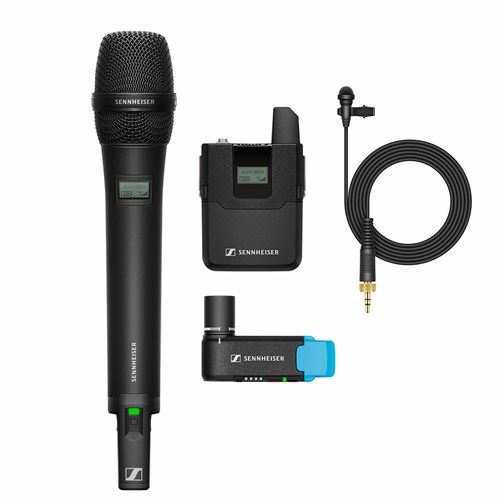

The AVX-Combo SET includes a handheld microphone, the plug on receiver, a bodypack transmitter with lavalier microphone and all accessories to operate out of the box on camcorders as well as DSLR cameras. It features self configuring digital transmission which eliminates time-consuming radio frequency setup. The ultra compact receiver rotates around the XLR connector to avoid collision with other devices mounted on your camera. It switches on and off automatically with your camera - saving battery power. The AVX matches perfectly to your camera's input sensitivity without having to adjust the audio level on the microphone. From professional wedding video to documentaries, from street interviews to corporate videos, the AVX just works allowing you to concentrate on creativity.
-
Very fast setup
-
Plugs directly into XLR audio input
-
Ultra compact receiver
-
Switches on/off by P48 Phantom power
-
Optimized dynamic range
-
Auto frequency management
-
AES 256 encryption
-
License free
-
Accessories included for DSLR use
-
Metal housing
-
Made in Germany
pecifications
-
- Color
-
black
-
- Frequency response
-
20 Hz - 20000 Hz
-
- THD, total harmonic distortion
-
typ. 0.1 %
-
- Weight
-
Receiver: 87 g (incl energy pack)
-
- Audio input
-
3,5 mm mini jack
-
- Audio output
-
XLR
-
- Operating temperature
-
-10 °C - + 55°C
-
- Signal-to-noise ratio
-
> 90 dB(A)
-
- RF output power
-
adaptive up to 250mW (peak) country specific
-
- Operating time
-
> 4h (Receiver), typ 15 h (Transmitter with LiIon energy pack)
-
- Modulation
-
GFSK (DECT)
-
- Audio output level
-
-30 dBu - 0 dBu in 4 Steps
-
- Battery Specification
-
Li-Ion 3,7 V DC
-
- Dynamic range
-
> 120 dB(A)
-
- Frequency band
-
1880 - 1900 MHz (AVX ME2/835 SET-3)
1920 - 1930 MHz (AVX ME2/835 SET-4)
-
- Sampling rates
-
24 bit / 48 kHz
-
- Latency
-
19 ms
What's in the Box
- SKM AVX
- accupack BA 10
- MMD 835 microphone head
- Microphone clamp
- EKP AVX adapter
- XLR to mini jack cable
- pouch
- SK AVX
- accupack BA 30
- ME 2-II lavalier microphone
- microphone clip
