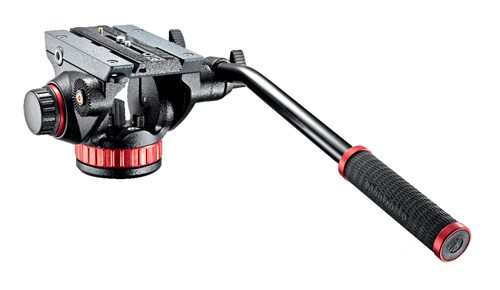

The Manfrotto 502 Fluid Video Head with flat base features variable fluid drag system for pan and tilt movements that's cleverly incorporated into the design. It's ideal for the latest camcorder and HDSLR cameras supplied with external accessories. It has a maximum capacity of 7kg and features a Ø75mm half ball connection to ensure compatibility with most equipment today. This video head also has a fixed counterbalance system of 4 Kg Last but not least, 3/8'' Easy Link attachment points allow an external monitor or other accessory equipment to be fitted.
| Weight |
1691 g |
| Collection/Series |
502 |
| Material |
Aluminum |
| Safety Payload Weight |
7 kg |
| Counterbalance Weight |
4 kg |
| Tilt Drag |
continuously adjustable from 0 to max level |
| Pan Drag |
continuously adjustable from 0 to max level |
| Plate Type |
504PLONG |
| Ball Flat |
Flat |
| Center of gravity |
55 mm |
| Front Tilt |
-80° / +90° |
| Bubble Spirit Level (No.) |
1 |
| Accessory Compatibility |
502HLV; 509HLV; 520BALL, 520BALLSH |
| Top Attachment |
1/4? screw, 3/8? screw |
| Base Diameter |
75 mm |
| Powered by (batteries) |
0 |
| Certifications |
None |
| Color |
Black |
| Easy Link |
Yes |
| Head Type |
Video/Fluid Head |
| Maximum Working Temperature |
60 C |
| Minimum Working Temperature |
-20 C |
| Pan Bar Included |
Yes |
| Panoramic Rotation |
360 |
| Quick Release |
Yes |
| Working Height |
13 cm |
