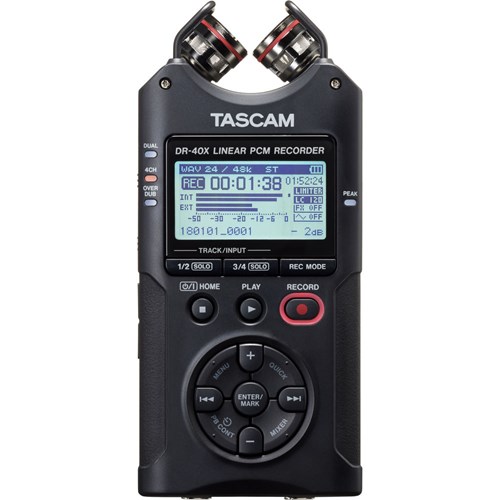

TASCAM DR-40X

Transcript Your Voice Recordings

The new Dictation Mode enables you to jump back and forth in preselected increments while playing back a file. It can be combined with speed control and a special dictation EQ making it useful for transcribing minutes recordings, for example. The new tape-style Overwrite mode with one level of undo lets you select a drop-in time and replace part of an existing recording.

Turn Your Room Into a Studio – In a Minute

Apart from handheld recording, the DR-40X can also be used as a USB audio interface with two inputs and outputs, making it a strong yet easy gear for voiceover work, live streaming, podcasting and songwriting with studio-quality audio.

Details

Four-Track Recording Mode Gives You Several Options to Record.

In addition to normal stereo recording and dual recording, the DR-40X has a four-channel mode that allows you to record two different stereo feeds simultaneously. You're flexible with the combination of the sources: record with the built-in microphones along with a pair of external mics for close-up and ambient sound, for example. Or use the built-in mics together with balanced line input to record the sound in the room along with a feed from a mixer.

A Safety Track for Unpredictable Situations.

Film-makers and videographers often experience sudden audio volume spikes during filming. An actor could suddenly scream, or a documentary subject could do almost anything.

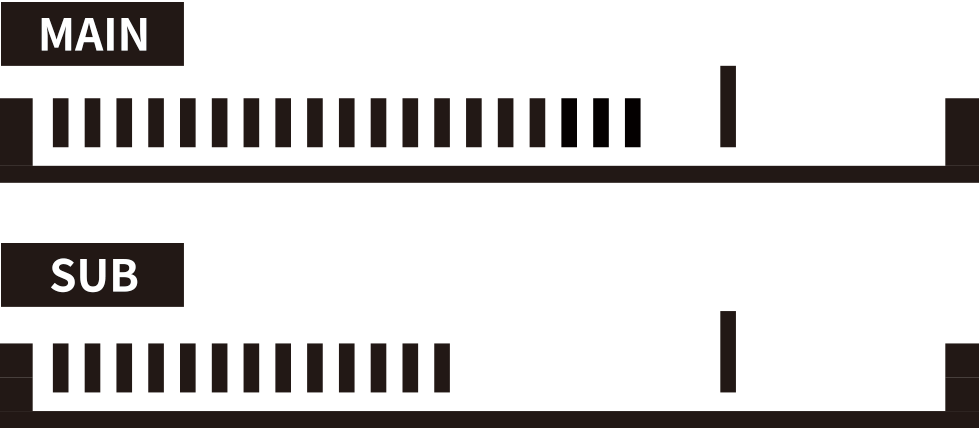

With its Dual Recording mode, the DR-40X captures a copy of your take but at a lower level, as a safety track in case of sudden distortion. There is also an auto recording function that can detect the signal level of the input sound to start recording automatically. And the pre-recording function provides fail-safe protection by actually capturing the audio up to two seconds before you press the Record button.

Still Safe If It’s Louder Than You Thought.

Peak Reduction works in rehearsal mode or in record. So even if the sound or performance is louder than the soundcheck you’re safe. Combined with Auto Level and Limiter for preventing distortion, you never have to worry about sudden level changes.

No Need to Go Through “Take 2” All Over Again.

If you don’t like the last part of a phrase you just recorded with your guitar, or if you change your mind and want to rephrase narration, the “Overwrite mode” is exactly what you need. It allows punch-in recording from a desired point. This means destructive editing with one level of undo.

Nondestructive Overdubbing.

The overdubbing function makes it possible to record while playing a previously recorded file. This allows you to record other parts such as a guitar solo over a backing track made such as at a rehearsal studio. Overdubbing creates a new file, leaving the original file unaffected, thus making it easy to re-record.

192 Hours of CD-Quality With a Single Memory Card.

The DR-40X supports SDXC cards as recording media, which are available with very large data capacities. If you record one stereo file in 44.1-kHz / 16-bit CD quality, it can be as long as 192 hours. In MP3 format at 320 kBit/s, such a card can hold up to 896 hours (that is 37 days!).



Features at a glance

• Portable, high-quality handheld recording
• Compact size and easy operation
• SD/SDHC/SDXC cards can be used as recording media (up to 128 GB)
• Supported audio formats:
  • Linear PCM (WAV/BWF format) at 44.1/48/96 kHz and 16/24-bit
  • Compressed (MP3 format): 32–320 kbit/s at 44.1/48 kHz (VBR files can be played but not recorded)
• Can be used as a USB audio interface with Mac and Windows computers (two inputs, two outputs)

Recording

• Built-in cardioid stereo condenser microphone
  • Accepts high sound pressure level up to 125 dB
  • Easy setup (AB and XY configuration supported)
  • XY configuration allows mono compatible recordings and high sound localization acuity (lively interviews or field recordings with ambience)
  • Good directivity and channel separation
  • Ideal for live music and field recording, news gathering, music training etc.
  • MS decoder for recordings created with mid/side microphone configuration
• Stereo XLR/TRS mic/line input with phantom power (supports +4 dB line level input)
• 4-track recording
  • Create two stereo recordings from the built-in microphones and the external mic/line input at the same time
  • Create two stereo recordings with different level settings from the built-in microphones or external mic/line input at the same time
  • Non-destructive overdub: Record a mix of one or two stereo playback files and a stereo input signal to a new stereo file or record only the input signal while playing back one stereo file
  • Mixdown feature with level, pan and effect controls for each track (creates a stereo track from a 4-track recording)
• Overwrite function for punch-in recording with one level of Undo
• MS decoder for recordings created with mid/side microphone configuration
• Switchable low-cut filter (40 Hz, 80 Hz, 120 Hz, 220 Hz)
• Manual or automatic recording level setting
• Three Options of automatic level control during recording: Peak Reduction, Auto Level, Limiter
• Pre-recording buffer (2 seconds) allows a recording to start before the record key is pressed
• Auto recording start and stop by input level
• Self-timer allows a recording to start 5 or 10 seconds after pressing the RECORD button

• Create a new file during recording (manually or by file size)
• Mark function (manual or automatic, up to 99 marks for each file)

Playback

• Automatic level align allows to increase the perceived overall sound pressure during playback
• Variable speed audition to change the playback tempo without affecting the key (50–200 %)
• Repeat function (repeat one track or all tracks)
• Loop function (repeat a marked section)
• Playlist feature to play files in a certain order
• Resume function (start playback from the audio position where the unit was last stopped)
• Jump back function to instantly review playback (1–10, 20, 30 seconds)
• Equalizer for tone control during playback
• MP3 ID3 tag display (up to version 2.4)
• Built-in monitor loudspeaker
• Headphones/Line output

Other features

• Built-in reverb effect (6 presets, can be applied to input or output signal)
• Chromatic tuner function to tune your instrument
• File divide function to cut unwanted noise or to extract parts from long recordings
• Folder management to organize your files
• Hold function to avoid inadvertent operation
• QUICK menu button for easy access to various functions
• Menu language can be selected between English, German, French, Italian, Spanish, Portuguese, Russian, Korean, Japanese, Chinese
• Clear, backlit LC display
• USB 2.0 port for file transfer to/from computer
• Power supply by 3 AA size Alkaline or NiMH batteries (up to 15 hours continuous operation with phantom power off), USB bus power or optional AC adapter (Tascam PS-P520U)
• Long-time operation of over 20 hours is possible using just the internal batteries
• Rubber feet included for improving the acoustic properties during desktop recordings
• Stand adapter (¼ inch) on bottom side to attach the unit to a tripod or microphone stand
• Optional footswitch (RC-3F) and wired remote control (RC-10)
