Ângulo de visão (diagonal, horizontal, vertical) 47° / 40° / 27° (com modelos Leica M8: 36° / 30° / 20°)
Desenho Óptico - Número de lentes/grupos: 8 / 5
Alcançe de Foco: 0.7 m a 8
Maior rácio de reprodução: aprox. 1:11.3
Valor minimo de abertura: 16
Baioneta: Leica M
Pára-Sol: incorporado, extensível por rotação
Dimensões: aprox. 47 mm
Diâmetro: aprox. 53 mm
Peso: aprox. 300 g

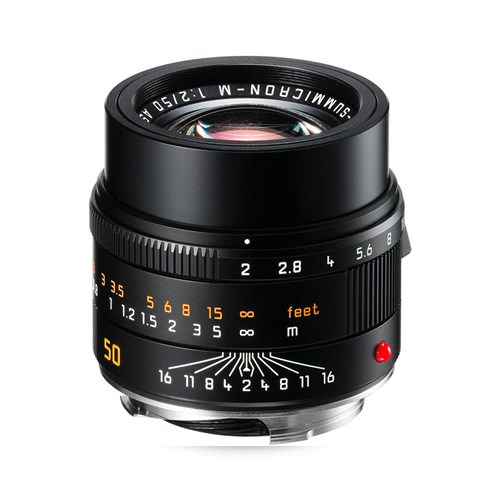

More than 30 years after the launch of Summicron-M 1:2/50 mm, which is still available, the Leica APO Summicron-M 1:2/50 mm ASPH. represents a totally new development. With its compact body - only marginally longer and slightly heavier than the Summicron-M 1:2/50 mm, and with an almost identical diameter, it provides visibly higher image quality.
| Angle of view (diagonal, horizontal, vertical) |
| for 35 mm (24 x 36 mm) |
47°, 40°, 27° |
| for M8 digital (18 x 27 mm) |
36°, 30°, 20°
corresponds to a focal length of approx. 67 mm with 35 mm-format
|
| Optical design |
|
| Number of lenses/groups |
8 / 5 |
| Position of entrance pupil |
24.4 mm (related to the first lens surface in light direction) |
| Focusing range |
0.7 m to infinity |
| Distance setting |
|
| Scales |
Combined meter/feet graduation |
| Smallest object field |
271 x 407 mm |
| Largest reproduction ratio |
1:11.3 |
| Aperture |
|
| Setting/Function |
With click-stops, half values available, manual diaphragm |
| Lowest value |
16 |
| Bayonet |
Leica M quick-change bayonet with 6 bit lens identification bar code for digital M models |
| Filter mount |
Non-rotating, internal thread for screw-on filters size E 39 |
| Lens hood |
Built-in, extendable by rotating |
| Dimension and weight: |
|
| Length |
47 mm |
| Largest diameter |
approx. 53 mm |
| Weight |
approx. 300 g |
