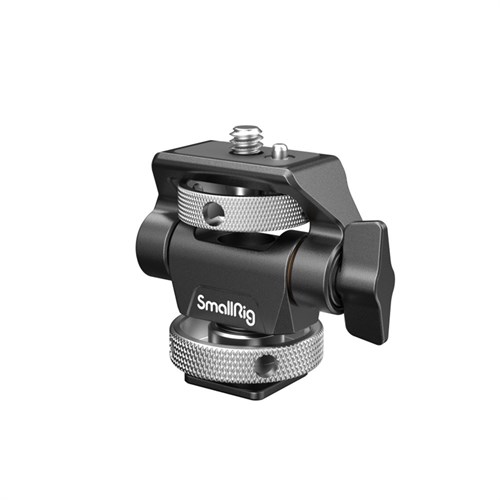

SmallRig Swivel and Tilt Adjustable Monitor Mount with Cold Shoe Mount 2905B
It comes with a bottom cold shoe for camera hot shoe, cage, or handle and a top 1/4"-20 screw for monitor, microphone, light, etc. The mount can tilt 180° and swivel 360°. Its tilt axis is quickly tightened via a knob to suit the different weights and features tested durability, with tilt load capacity decreased by no more than 20% after 10,000 tilts, while its pan axis is 360° adjustable via an Allen wrench. Bouncy locating pins on the top help secure Ninja V/ V+, and 1/4"-20 threaded holes at the bottom allow attaching Magic Arm 2070, etc. Both thumbscrews have holes for the Allen wrench to facilitate assembly and disassembly.
1. Highly compatible cold shoe mount.
2. Tightness adjustable on each axis swivels 360° and tilts 180°.
3. Tested durability, with tilt load capacity, decreased by no more than 20% after 10,000 tilts.
4. Bouncy locating pins and silicone pad prevent twisting.
5. Holes in thumbscrews for quick release of the mount.
6. 1/4"-20 threaded holes at the bottom for a magic arm.
Note:
90° load capacity: <4.2kg
45° tilt load capacity: <2.5kg
30° tilt load capacity: <2.3kg
Work With: 5” and 7” monitor
Packing List
1 x Monitor Mount
1 x Allen Wrench
Product Dimensions: 45 x 52.6 x 30mm
Package Dimensions: 78 x 67 x 42mm
Net Weight: 78g±5g
Package Weight: 98g±5g
Material(s): Aluminum Alloy, Stainless Steel
