Compatibility list
NINJA V | NINJA FLAME | NINJA INFERNO | SUMO 19* | SUMO 19M* | SHOGUN FLAME | SHOGUN INFERNO | SHOGUN STUDIO*

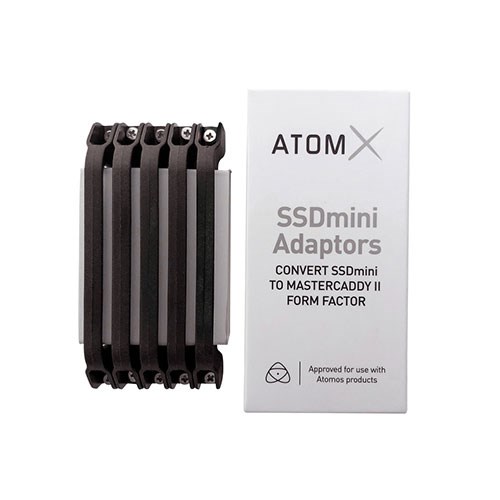

*SUMO 19 / 19M & SHOGUN STUDIO require to use the Atomos SSDmini adapter handle.
DIMENSIONS80.0 x 75.5 x 9.3 mm (3.15 × 2.97 x 0.37 in)
WEIGHT~ 90.0 g | ~ 3.2 oz
Performance
SEQUENTIAL READ SPEED1560 MB/s
SUSTAINED READ SPEED1540 MB/s
SEQUENTIAL WRITE SPEED1520 MB/s
SUSTAINED WRITE SPEED1500 MB/s
ACCESS TIME (R/W)~ 65 µs | 40 µs
Reliability
MTBF2,400,000 hours
DATA RELIABILITYBuilt-in EDC | ECC function
DATA RETENTION10 years at 25°
ENDURANCE 500 GB: up to 1,500 TBW
1 TB: up to 3,000 TBW
2 TB: up to 6,000 TBW
Electrical
DC INPUT VOLTAGE5 V ± 10 %
POWER USAGE (IDLE/MAX) 500 GB: 0.35 W / 3.0 W
1 TB: 0.35 W / 3.5 W
2 TB: 0.35 W / 3.5 W
Technical
INTERFACESATA 6 Gb/s, 3 Gb/s and 1.5 Gb/s supported,
SATA 3.0 compliant
OVER PROVISIONING~ 9 %
FEATURESTemperature sensor, overload protection, TRIM, ECC, EMS protection, built-in cache, SMART, NCQ
Environmental
SHOCK RESITANCE (OPERATING)1000 G/0.5 ms
VIBRATION RESISTANCE (OPERATING)2.17 GRMS
OPERATING TEMPERATURE-20 °C | 70 °C
STORAGE TEMPERATURE–40 °C | 85 °C
OPERATING HUMIDITY5 % to 95 % non-condensing
Supported codecs
4k60p 2k240p Apple ProRes / Avid DNx
5.7k30p 4k60p 2k240p Apple ProRes RAW
4k30p CDNG
Package content

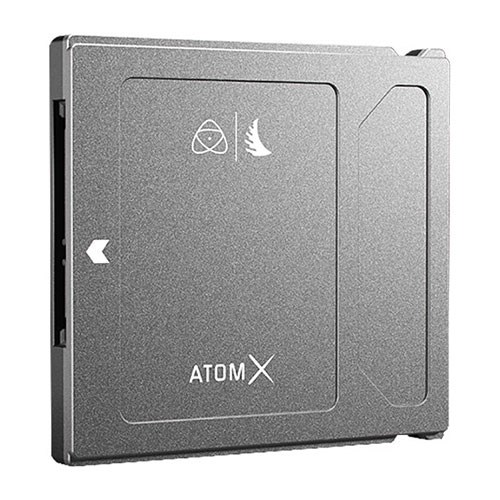

• AtomX SSDmini
• Activation code for the full limited warranty
