V - MOUNT CONNECTION HOLDER
PB-D200V, PB-D150V and PB-D100V have standard SONY V-mount connection and we adopt the high quality lightweight aluminium V-wedge that ensures the reliable and safe mounting.
GOLD - MOUNT CONNECTION HOLDER
PB-D200A, PB-D150A and PB-D100A have standard Anton Bauer connection and we adopt the high quality lightweight aluminium holders, that ensures the reliable and safe mounting.
BUILT-IN D-TAP 14.8V 80W, 6A, DC OUTPUT SOCKET
A D-Tap DC output socket ( Dust Cover Protection) is equipped on the side of the Battery Pack. With this external Power supply facility, you can connect on-camera LED light, Video Monitor or Wireless Transmitter on the D-tap socket, and get power simultaneously together with Battery attached to the Camera, or totally separately like independent Power Station. The Max power from D-tap is 80W, 6A.
BUILT-IN USB 5V, 2.1A OUTPUT SOCKET
To Power external Electronic Devices that can be powered with USB Power, we designed the USB 5V, 2.1A Output. With this function you can use REDPRO Battery like Power Station to charge your Cell Phone or Pad, or any other Electronic Devices that can be powered with USB 5V Power.
4-LED POWER MONITOR INDICATOR
Battery Pack have build in 4-LED Power Monitor indicator that, upon the press of test button, shows whether 100%, 75%, 50%, or 25% of power is left remaining in the battery.
CHARGING THE BATTERY
To charge the battery with optimal performances we suggest to use REDPRO Charger RP-DC80. With this charger the Battery will be charged in full capacity, and prolong the battery cells life. Also the Battery can be charged with any other professional 16.8V charger, that is designed for charging the V-Lock and Gold-Mount Professional Battery Pack.
POWERING LED
The Professional Battery Pack is ideal as Power Supply to any LED Light unit on the world market. Depending on the battery mount style it is perfect solution for studio or out door LED Light application use. Thanks to the build in 4-LED Power Monitor indicator (upon the press of test button, shows whether 100%, 75%, 50%, or 25% of power is left remaining in the battery) the LED Light operation and function is secure for unexpectedly power off.
DATA COMMUNICATION WITH CAMCORDER
With data communication chip that is build in, the remind power from the battery is exact in percentage displayed on the SONY Camcorder LCD monitor
ENVIRONMENTALLY-FRIENDLY
REDPRO Battery Packs are fully in compliance with European Union RoHS regulations ( Restriction Of Hazardous Substances) and are 100% free of Lead, Cadmium and Mercury, where RedPro products take part in active protecting of the environment and preserving the highest standards of environmental protection.
MULTIPLE PROTECTION
The Circuit of the Battery Pack has Multiple Protection of Abnormal Current Protection, Voltage Protection, Short Circuit Protection and Overheating Temperature Protection. This functions allow the Battery Pack longer Operation life and safer use for Professional purposes.
SPECIFICATIONS:

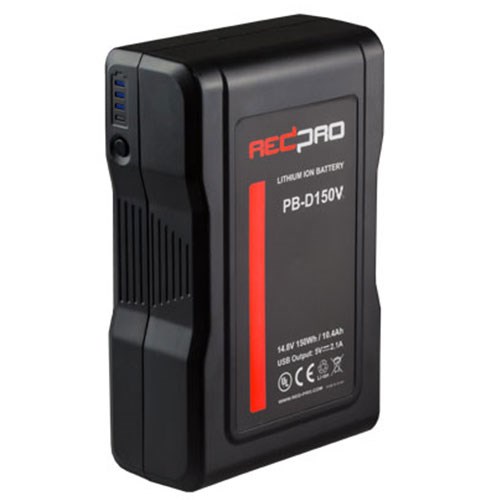

Battery Pack Model: PB-D150V Info-Lithium Battery Pack
Mount Type : V - Mount ( V-lock holder )
Power Meter : Blue Color 4-LED Power Monitor ( Display 100%, 75%, 50%, or 25% batt. capacity )
Product Color : Dark Grey
Bat. Cell Model : Samsung SDI High Quality 18650 x 16
Bat. Cell Chemistry : Lithium-Ion
Output Voltage : 14.8 V DC
Minimum Out Voltage : 10.8 V DC ( Auto Power Control )
Capacity : 10400 mAh / 153.92 Wh
Maximum Load : 10A / 150W
USB Output : 5V, 10W / 2.1A max ( Dust Protection Cover )
D-Tap Output : 14.8V, 75W / 5A max ( Dust Protection Cover )
DC Output : 14.8V, 75W / 5A max ( Dust Protection Cover )
Maximum Charge Voltage : 16.8V / 2.3A
Dimensions (WxHxD) : 96 x 152 x 53 mm
Operating Temperature : –20°C to +45°C (–4°F to +113°F)
Weight ( Gram, Pound, Ounce) : 880 g ; 1.95 lbs ; 31 oz.
