Materials
Crafted with conscience
The only mirrorless full format camera designed and crafted in Germany, with an unmatched all metal solid construction and elegant leather wrap to withstand the time and deliver years of photographic pleasure, thanks to the sustainability guaranteed by consistent firmware updates.
Control and handling
Designed with photographers, for photographers
A unique user interface, separated for photo and video functions, simple and intuitive to allow the photographer to focus on picture taking and live an unparalleled experience, developed through feedbacks of customers and professional photographers worldwide.
Cine Mode
Professional film performance
The Leica SL2 is the first full-frame mirrorless camera with a video resolution of up to 5k. With it’s 4k on full-frame and up to 60fps, the SL2 can perform exceptionally demanding video production tasks. Being separated from the photo-modes also means that that important settings such as ISO, shooting assistants, image style settings, are entirely independent of photo mode. Time consuming settings in sub-menus are avoided - meaning that the camera is correctly configured and ready to shoot at all times.
4K Video
Hollywood ready
Frame-rate capacity of 180 fps in Full HD
EyeRes® Viewfinder
Perfect control in every situation
"The innovations and upgrades implemented in the Leica SL2 are quite dramatic, beginning with a new and improved EVF. Just looking through the viewfinder will give the photographer a complete and accurate “live” preview of the scene as it will be captured. The frame rate of the Leica SL2 has also been greatly increased. The fact that there is no noticeable time delay effectively closes this gap with single-lens reflex cameras."
The improved EyeRes® EVF matches an outstanding 5.76MP panel with an eyepiece built with finest metal and glass and the tightest mechanical and optical tolerances to deliver an unmatched viewing experience, and allow the easiest composition of the image.
Maestro III Processor
The new Maestro III processor facilitates a superior operating speed that shines in many aspects of the SL2’s performance. The autofocus is significantly faster and allows for a virtually lag-free shutter release in any shooting situation, which is further complemented by the new Smart AF mode, which autonomously switches between focus priority and shutter release priority. Full-resolution recordings of consecutive images are possible at 10 frames per second with the focal plane shutter, and 20 frames per second with the electronic shutter. Thanks to two UHS-II-compatible SD card slots, raw files can be saved simultaneously in DNG and JPEG format.
Leica FOTOS
Optimal mobile workflow
eica FOTOS 2.0 connects your camera seamlessly to your smartphone or iPad via Wi-Fi or Bluetooth®. The app enables you to transfer images, control your Leica camera per remote, as well as to view, edit and share your pictures in several formats.
New Leica Object Detection AF
Ensures a fast and reliable AF
The new Leica Object Detention AF ensures a fast and reliable AF. In addition to an array of modes and features, including face recognition, the SL2’s high-performance AF system also automatically detects whether a subject is stationary or in motion, and subsequently switches between motion and focus priority.
New in-body stabilization
Through sensor-shift technology
In a major evolution of the SL, the Leica SL2 features a suspended sensor which adjusts its position in order to quickly and efficiently compensate for camera shake. This in-camera method even makes image stabilization available to lenses that are not equipped with their own.
Additionally, in multishot mode, the tripod-mounted camera can record up to eight consecutive frames, whereby the sensor is shifted in half-pixel increments in between every exposure. This key feature results in images with an incredible quadrupled resolution of around 187 megapixels, leading to an extreme increase in detail resolution.
Robust & Dust- and spraywater resistant (IP54)
Weather sealing for more rugged situations
The SL2’s IP54 certification ensures an elevated weather sealing for more rugged situations, while a new option to turn off noise reduction during long exposures allows for more hands-free shooting. Less worry about the weather and environmental situations means photographers can focus more on getting the shot.
Enormous dynamic range, a color depth of 14 bits per RGB channel and a sensitivity of up to ISO 50,000 enable outstanding image quality in all lighting conditions.

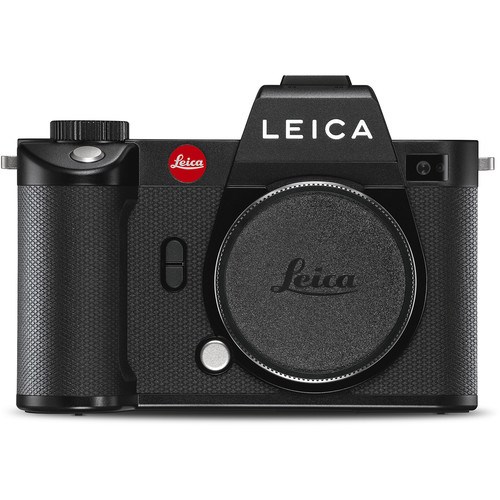

Camera: Leica SL2
Camera type: Mirrorless full-frame system camera
Type no: 2998
Buffer memory: 4 GB: DNG™: 78 recordings / JPG: > 100 recordings
Storage medium: UHS-II (recommended), UHS-I, SD/SDHC/SDXC memory card
Material: Full-metal housing made of aluminum and magnesium, leatherette, cover, splash-water protected in compliance with IEC standard 60529 (protection type IP54).
Lens mount: Leica L bayonet with contact strip for communication between lens and camera
Operating conditions: -10 to +40°C
Interfaces: ISO accessory shoe with additional control contacts, HDMI jack 2.0b Type A, USB 3.1 Gen1 Type C, Audio-Out 3.5 mm/Audio-In 3.5 mm, communication interface in the base cover for multifunction hand grip
Tripod thread: A 1/4 DIN 4503 (1/4”) with stainless steel in the base
Dimensions (WxHxD): 146 x 107 x 42 mm
Weight: Approx. 835 g (without battery)
Sensor
Sensor size: CMOS sensor, pixel pitch: 4.3 μm / Fullframe (47.3 MP): 8368 x 5584 pixels / APS-C (20.2 MP): 5504 x 3664 pixels
Image Stabilization: 5 axis Body Image Stabilization. Camera stabilizes up to 5.5 stops
Filter: RGB color filter, UV/IR filter, no low-pass filter
Processor: Leica Maestro series (Maestro III)
File formats: Photo: DNG™ (raw data), DNG + JPG, JPG (DCF, Exif 2.31) Video: MP4: H.264/MPEG-4 AVC (Audio Format: 2ch 48kHz/16 bit, AAC), MOV: H.264/MPEG-4 AVC (Audio Format: 2ch 48 kHz/16 bit, AC-3)
Picture resolution: DNG™: 8368 x 5584 pixels (46.7 MP) JPG: 8368 x 5584 pixels (46.7 MP), 6000 x 4000 pixels (24 MP), 4272 x 2848 pixels (12 MP)
Color depth: DNG™: 14 bit, JPG: 8 bit
Color space: Picture: sRGB, ECI-RGB v2.0, Adobe RGB Video: Rec. 709/Rec. 2020 (HLG)/L-Log
File size: DNG™: 84.4 MB JPG: depending on resolution and image content Video: max. length: 29 min, max. file size: 96 GB
Recording Mode Video: Video mode: P - A - S – M / Cine mode: M
Video resolution/frame rate: MOV 5K: 29.97 fps, 25 fps, 23.98 fps / MOV C4K: 59.94 fps, 50 fps, 29.97 fps, 25 fps, 24 fps / MOV 4K: 59.94 fps, 50 fps, 29.97 fps, 25 fps, 23.98 fps / MOV FHD: 180 fps, 150 fps, 120 fps, 100 fps, 59.94 fps, 50 fps, 29.97 fps, 25 fps, 23.98 fps / MP4 4 K: 59.94 fps, 50 fps, 29.97 fps, 25 fps, 23.98 fps / MP4 FHD: 180 fps, 150 fps, 120 fps, 100 fps, 59.94 fps, 50 fps, 29.97 fps, 25 fps, 23.98 fps
Bit Rate: 8/10 bit for recordings on SD card, 10 bit via HDMI output
Video Gamma: Rec. 709, L-Log Rec. 2020, HLG Rec. 2020
Viewfinder (EVF): Resolution: 5,760,000 dots, 120 fps, magnification: 0.78x, aspect ratio: 4:3, frame coverage: 100%, exit pupil position: 21mm, setting range +2/-4 diopters, with eye sensor for automatic switchover between viewfinder and LCD panel, time delay 0.005 s
LCD panel: 3.2“ (backlight LED) with anti-fingerprint and anti-scratch coating, 2,100,000 pixels (dots), format 3:2, touch control available
Top display: 1.28“ highly reflective trans-reflective monochrome LCD, 128 x 128 pixels, viewing angle 120°; anti-fingerprint coating
Shutter
Shutter type: Electronically controlled focal plane shutter/electronic shutter
Shutter speeds: Mech. shutter: 30 min to 1/8000 s / Electr. shutter function: 1 s to 1/40000 s / Flash Sync: up to 1/250 s
Shutter button: Two-stage (1st stage: Activation of the camera electronics including autofocus and exposure metering, 2nd stage: Taking the picture)
Self-timer: Delay time: 2 s or 12 s
Picture Series: Single Continuous Low Speed (3 fps), Continuous Medium Speed (6 fps), Continuous High Speed (10 fps without AFc/AE/WB), Continuous Super Speed (20 fps with electr. shutter function without AFc/AE/WB), Interval Shooting, Exposure Bracketing, Multishot
Multishot: Generates 2 DNGs: 1x 47 MP, 1x 187 MP (8 pictures are combined into one high-res image)
Focusing
Focus Mode: Automatic (Autofocus in modes iAF/AFs/AFc/Touch AF) or manual. With manual setting: Auto Magnification and Focus Peaking optionally available as focus aids
Autofocus system: Based on contrast metering and depth mapping
Autofocus modes: Intelligent AF (autonomously selects AFs and AFc), AFs (picture taken only after successful focusing), AFc (picture can be taken at any time), AF setting can be saved
Autofocus Metering Methods: Spot (can be shifted), Field (can be shifted), Multi-Field, Zone, Face detection, object tracking, optional Touch AF
Autofocus Metering Fields: 225
Exposure
Exposure metering: TTL ("Through The Lens" exposure metering)
Exposure Metering Methods: Spot, Center-Weighted, Multi-Field
Exposure modes: Automatic program (P), Aperture priority (A): manual aperture setting, Shutter priority mode (S): manual shutter speed setting Manual (M): manual setting for shutter speed and aperture
Exposure Compensation: ±3 EV in 1/3 EV increments or 1/2 EV increments
Automatic bracketing: 3 or 5 exposures, up to ±3 EV, in 1/3 EV increments Shift function: up to ±3 EV, additional JPG-HDR
ISO sensitivity range: Auto ISO: ISO 100 to ISO 50000, Manual: ISO 50 to ISO 50000
White balance: Automatic (Auto), Daylight 5200 K, Cloudy 6000 K, Shadow 7000 K, Tungsten 3200 K, HMI 5600 K, Fluorescent Warm 4000 K, Fluorescent Cold 4500 K, Flash 5400 K, Gray Card Live View, Gray Card, Color Temperature 2000 K to 11500 K
Flash
Flash unit connector: Accessory shoe
Flash sync time: 1/250 sec, slower shutter speeds available, automatic changeover to TTL linear flash mode with HSS-compatible Leica flash units
Flash exposure metering: Using center-weighted TTL pre-flash metering with Leica flash units (SF 26, 40, 58, 60, 64) or with system-compatible flash units, flash remote control SF C1
Flash exposure compensation: SF 40: ±2 EV in 1/2 EV increments, SF 60: ±2 EV in 1/3 EV increments
Equipment
Microphone: Stereo internal + microphone input 3.5 mm stereo jack
Speaker: Mono internal + headphones output 3.5 mm stereo jack
WLAN: The Leica FOTOS app is required to use the WLAN function. The Leica app is available from the Apple App Store™ or the Google Play Store™. Compliant with Wi-Fi IEEE802.11b/g/n, 2.4 GHz, channel 1-11 (2412-2462 MHz) and Wi-Fi IEEE802.11ac, 2.4 GHz & 5 GHz, channel 39-48 (5180-5240 MHz), channel 52-64 (5260-5320 MHz), channel 100-140 (5500-5700 MHz) (standard WLAN protocol), encryption method: WLAN-compatible WPA™/WPA2™
Bluetooth: Bluetooth v4.2 (Bluetooth Low Energy (BLE)), 2402 to 2480 MHz
GPS: Via Leica FOTOS app
Menu languages: English, German, French, Italian, Spanish, Russian, Japanese, Simplified Chinese, Traditional Chinese, Korean
Power supply
Rechargeable battery (Leica BP-SCL4): Lithium-ion rechargeable battery, rated voltage: 7.2 V (DC); capacity: 1860 mAh (min.), approx. 370 recordings (based on CIPA standard, without EVF); charging time: approx. 140 min (after deep discharge); manufacturer: Panasonic Energy (Wuxi) Co. Ltd., Made in China
USB Power Supply: USB charger function in standby mode or when switched off, USB power supply when switched on
Charger (Leica BC-SCL4): Input: AC 100–240 V, 50/60 Hz, 0.25 A, automatic switchover; Output: DC 8.4 V 0.85 A; Manufacturer: Salom Electric (Xiamen) Co., Ltd., Made in China
