| Model name |

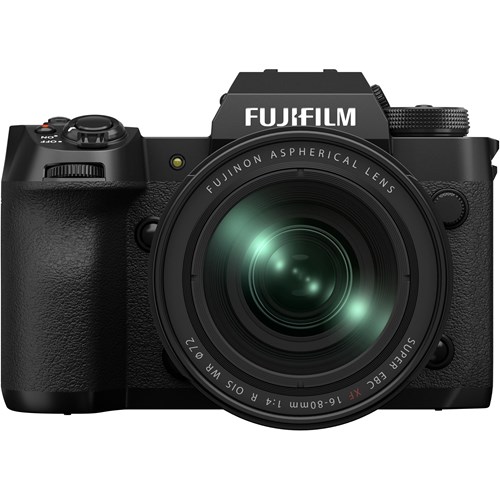

FUJIFILM X-H2 |
| Lens Mount |
FUJIFILM X mount |
| Image sensor |
23.5mm x 15.6mm (APS-C) X-Trans CMOS 5 HR with primary color filter |
| Number of effective pixels |
40.2 millions pixels |
| Sensor Cleaning System |
Ultra Sonic Vibration |
| Image Processing Engine |
X-Processor 5 |
| Storage media |
SD Card (-2GB) / SDHC Card (-32GB) / SDXC Card (-2TB) / UHS-I / UHS-II / Video Speed Class V90 / CFexpress Type B Card (-2TB)
*Please check Compatibilityfor more detail.
*Please check the list of the operation confirmed CFexpress Type B Card |
| File format of still image |
DCF |
Compliant with Design rule for Camera File system (DCF2.0) |
|
JPEG |
Exif Ver.2.32*1 |
|
HEIF |
4:2:2 10bit |
|
RAW |
14bit RAW (RAF original format) |
|
TIFF |
8bit / 16bit RGB (In-camera Raw Conversion Only) |
| Number of recorded pixels |
[L] |
<4:3> 6864 x 5152 <3:2> 7728 x 5152 <16:9> 7728 x 4344 <1:1> 5152 x 5152 <5:4> 6432x5152 |
|
[M] |
<4:3> 4864 x 3648 <3:2> 5472 x 3648 <16:9> 5472 x 3080 <1:1> 3648 x 3648 <5:4> 4560x3648 |
|
[S] |
<4:3> 3464 x 2592 <3:2> 3888 x 2592 <16:9> 3888 x 2184 <1:1> 2592 x 2592 <5:4> 3264x2592 |
| Panorama |
[L] |
9600 x 2160 9600 x 1440 |
|
[M] |
6400 x 2160 6400 x 1440 |
| Digital Tele-Converter |
2.0x / 1.4x / OFF |
| Sensitivity |
Still Image |
Standard Output: AUTO1 / AUTO2 / AUTO3 /ISO125-12800 (1/3 step)
Extended Output: ISO64 / ISO80 / ISO100 / ISO25600 / ISO51200 |
|
Movie |
Standard Output: AUTO / ISO125-12800 (1/3 step)
Extended Output: ISO25600 |
| Exposure control |
TTL 256-zone metering / Multi / Spot / Average / Center Weighted |
| Exposure mode |
P (Program AE) / A (Aperture Priority AE) / S (Shutter Speed Priority AE) / M (Manual Exposure) |
| Exposure compensation |
Still |
-5.0EV - +5.0EV 1/3EV step |
|
Movie |
-2.0EV - +2.0EV 1/3EV step |
| Image stabilizer |
Mechanism |
Image sensor shift mechanism with 5-axis compensation |
|
Compensation Effect |
7.0 stops
*based on CIPA standard
*Pitch/yaw shake only
*With XF35mmF1.4 R lens mounted |
|
Digital Image Stabilization |
Yes (movie mode only) |
|
IS MODE BOOST |
Yes (movie mode only) |
| Shutter type |
Focal Plane Shutter |
| Shutter speed |
Mechanical shutter |
P mode: 4sec. to 1/8000sec. A mode: 30sec. to 1/8000sec. S/M mode: 15min. to 1/8000sec. Bulb: up to 60min. |
|
Electronic shutter |
P mode: 4sec. to 1/180000sec. A mode: 30sec. to 1/180000sec. S/M mode: 15min. to 1/180000sec. Bulb: 1sec. Fixed |
|
Electronic front curtain shutter |
P mode: 4sec. to 1/8000sec. A mode: 30sec. to 1/8000sec. S/M mode: 15min. to 1/8000sec. Bulb: up to 60min. |
|
Mechanical + Electronic shutter |
P mode: 4sec. to 1/180000sec. A mode: 30sec. to 1/180000sec. S/M mode: 15min. to 1/180000sec. Bulb: up to 60min.
*Mechanical shutter works until 1/8000sec. |
|
E-front + Mechanical shutter |
P mode: 4sec. to 1/8000sec. A mode: 30sec. to 1/8000sec. S/M mode: 15min. to 1/8000sec. Bulb: up to 60min.
*Electronic front curtain shutter works until 1/2000sec. |
|
E-front + Mechanical + Electronic shutter |
P mode: 4sec. to 1/180000sec. A mode: 30sec. to 1/180000sec. S/M mode: 15min. to 1/180000sec. Bulb: up to 60min.
*Electronic front curtain shutter works until 1/2000sec, Mechanical shutter works until 1/8000sec.
*The Electronic Shutter may not be suitable for fast-moving objects or handheld shooting. Flash cannot be used. |
|
Movie |
8K: 1/8000sec. to 1/24 sec. 6.2K: 1/8000sec. to 1/24 sec. DCI4K/4K: 1/8000sec. to 1/4 sec. FHD: 1/8000sec. to 1/4 sec.
*Cannot choose slower shutter speed than framerate for some settings. |
|
Synchronized shutter speed for flash |
Mechanical shutter: 1/250sec. or slower
Electronic shutter: 1/125sec. or slower |
| Continuous shooting |
CH Electronic shutter Approx. 20fps (1.29x Crop) (JPEG 1000+ frames, Compressed RAW 1000+ frames, Lossless compressed RAW 1000+ frames, Uncompressed RAW 202 frames, Compressed RAW + JPEG 129 frames, Lossless compressed RAW + JPEG 95 frames, Uncompressed RAW + JPEG 90 frames)
CH Electronic shutter Approx. 13fps (1.29x Crop) (JPEG 1000+ frames, Compressed RAW 1000+ frames, Lossless compressed RAW 1000+ frames, Uncompressed RAW 1000+ frames, Compressed RAW + JPEG 372 frames, Lossless compressed RAW + JPEG 361 frames, Uncompressed RAW + JPEG 223 frames)
CH Electronic shutter Approx. 10fps (1.29x Crop) (JPEG 1000+ frames, Compressed RAW 1000+ frames, Lossless compressed RAW 1000+ frames, Uncompressed RAW 1000+ frames, Compressed RAW + JPEG 1000+ frames, Lossless compressed RAW + JPEG 1000+ frames, Uncompressed RAW + JPEG 1000+ frames)
CH Electronic shutter Approx. 13fps (JPEG 1000+ frames, Compressed RAW 1000+ frames, Lossless compressed RAW 1000+ frames, Uncompressed RAW 1000+ frames, Compressed RAW+JPEG 131 frames, Lossless compressed RAW+JPEG 131 frames, Uncompressed RAW+JPEG 127 frames)
CH Electronic shutter Approx. 8.9fps (JPEG 1000+ frames, Compressed RAW 1000+ frames, Lossless compressed RAW 1000+ frames, Uncompressed RAW 1000+ frames, Compressed RAW+JPEG 769 frames, Lossless compressed RAW+JPEG 751 frames, Uncompressed RAW+JPEG 302 frames)
CH Mechanical shutter Approx. 15fps (JPEG 1000+ frames, Compressed RAW 1000+ frames, Lossless compressed RAW 1000+ frames, Uncompressed RAW 400 frames, Compressed RAW+JPEG 110 frames, Lossless compressed RAW+JPEG 108 frames, Uncompressed RAW+JPEG 104 frames)
CH Mechanical shutter Approx. 10fps (JPEG 1000+ frames, Compressed RAW 1000+ frames, Lossless compressed RAW 1000+ frames, Uncompressed RAW 1000+ frames, Compressed RAW+JPEG 512 frames, Lossless compressed RAW+JPEG 492 frames, Uncompressed RAW+JPEG 223 frames)
CH Mechanical shutter Approx. 7.0fps (JPEG 1000+ frames, Compressed RAW 1000+ frames, Lossless compressed RAW 1000+ frames, Uncompressed RAW 1000+ frames, Compressed RAW+JPEG 1000+ frames, Lossless compressed RAW+JPEG 1000+ frames, Uncompressed RAW+JPEG 1000+ frames)
Pre-shot Electronic shutter Approx. 20fps (1.29x Crop) (While half press 20 frames, After full press 1000+ frames)
Pre-shot Electronic shutter Approx. 13fps (1.29x Crop) (While half press 13 frames, After full press 1000+ frames)
Pre-shot Electronic shutter Approx. 10fps (1.29x Crop) (While half press 10 frames, After full press 1000+ frames)
Pre-shot Electronic shutter Approx. 13fps (While half press 13 frames, After full press 1000+ frames)
*No. of recordable frames are calculated based on CFexpress Type B card in a cold start
*Recordable frames depends on recording media
*Speed of continuous shooting depends on shooting environment and shooting frames |
| Drive Mode |
AE Bracketing |
2 frames / 3 frames / 5 frames / 7 frames / 9 frames
*by 1/3EV step, up to ±3EV steps |
|
Filmsimulation bracketing |
Any 3 types of film simulation selectable |
|
Dynamic Range Bracketing |
100% / 200% / 400% |
|
ISO sensitivity Bracketing |
±1/3EV / ±2/3EV / ±1EV |
|
White Balance Bracketing |
±1 / ±2 / ±3 |
|
Focus Bracketing |
AUTO / MANUAL |
|
Multiple Exposure |
Yes (Max. 9 frames) / Additive / Average / Bright / Dark |
|
HDR Mode |
AUTO / 200% / 400% / 800% / 800% + |
|
Advanced filter |
Toy camera / Miniature / Pop color / High-key / Low-key / Dynamic tone / Soft focus / Partial color (Red / Orange / Yellow / Green / Blue / Purple) |
|
Pixel Shift Multi Shot |
Yes |
| Focus |
Mode |
Single AF / Continuous AF / MF |
|
Type |
Intelligent Hybrid AF (TTL contrast AF / TTL phase detection AF) |
|
Low-light Performance |
Contrast: -4.0EV XF50mmF1.0 attached
Phase Detection: -7.0EV XF50mmF1.0 attached |
|
AF frame selection |
Single point AF: 13x9 / 25x17 (Changeable size of AF frame)
Zone AF: 3x3 / 5x5 / 7x7 from 117 areas on 13×9 grid
Wide/Tracking AF: Yes (AF-S: Wide / AF-C: Tracking)
All: Yes |
|
Face/eye detection |
Yes |
|
Subject detection |
Yes (Animal/Bird/Automobile/Motorcycle&Bike/Airplane/Train) |
| Flash |
EF-X8 |
Guide Number: approx. 11 (ISO200·m) / approx. 8 (ISO100·m)
Sync. Mode: 1st Curtain / 2nd Curtain
Flash Mode: TTL (TTL AUTO / STANDARD / SLOW SYNC. ) / MANUAL / COMMANDER / OFF |
|
Shoe mount flash |
Sync. Mode: 1st Curtain / 2nd Curtain / AUTO FP (HSS)
Flash Mode: TTL (TTL AUTO / STANDARD / SLOW SYNC. ) / MANUAL / MULTI *When EF-X500 is set / OFF |
|
Synchronized terminal |
Sync. Mode: 1st Curtain / 2nd Curtain
Flash Mode: MANUAL |
| Hot shoe |
Yes (Dedicated TTL Flash compatible) |
| Viewfinder |
EVF: 0.5 inch OLED Color Viewfinder, Approx. 5.76 million dots
Coverage of Viewing Area vs. Capturing Area: Approx. 100%
Eyepoint: Approx. 24mm (from the Rear End of the Camera's Eyepiece)
Diopter Adjustment: -5~+3m-1
Magnification: 0.80x with 50mm Lens (35mm Equivalent) at infinity and Diopter set to -1.0m-1
Diagonal Angle of View: approx. 40° (Horizontal angle of view: approx. 32° )
Built-In Eye Sensor |
| LCD monitor |
3.0 inch vari-angle Touch Screen Color LCD Monitor
Aspect Ratio: 3:2
Dots: Approx. 1.62 million dots |
| Touch Screen Mode |
Shooting Mode |
Shooting, AF, Focus Area, OFF, Double Tap Setting (ON/OFF), Touch Function Setting (ON/OFF), Touch Zoom (ON/OFF), EVF Touch Screen Area Setting |
|
Playback Mode |
Swipe, Pinch-in / Pinch-out, Double-tap, Drag |
| Sub LCD monitor |
1.28 inch Monochrome LCD Monitor
Aspect Ratio: 1:1
Dots: 128x128-dot |
| Movie recording |
File format |
MOV:
Apple ProRes 422 HQ, Linear PCM (Stereo sound 24bit / 48KHz sampling)
Apple ProRes 422, Linear PCM (Stereo sound 24bit / 48KHz sampling)
Apple ProRes 422 LT, Linear PCM (Stereo sound 24bit / 48KHz sampling)
HEVC/H.265, Linear PCM (Stereo sound 24bit / 48KHz sampling)
MPEG-4 AVC/H.264, Linear PCM (Stereo sound 24bit / 48KHz sampling)
MP4:
MPEG-4 AVC/H.264, AAC |
|
Movie compression |
All Intra / Long GOP |
|
File size
Frame rate
Bitrate |
[8K(16:9)] 7680 x 4320 29.97p/25p/24p/23.98p 720Mbps/360Mbps/200Mbps/100Mbps/50Mbps
[6.2K(16:9)] 6240 x 3510 29.97p/25p/24p/23.98p 720Mbps/360Mbps/200Mbps/100Mbps/50Mbps
[DCI4K HQ(17:9)] 4096 x 2160 29.97p/25p/24p/23.98p 720Mbps/360Mbps/200Mbps/100Mbps/50Mbps
[4K HQ(16:9)] 3840 x 2160 29.97p/25p/24p/23.98p 720Mbps/360Mbps/200Mbps/100Mbps/50Mbps
[DCI4K(17:9)] 4096 x 2160 59.94p/50p/29.97p/25p/24p/23.98p 720Mbps/360Mbps/200Mbps/100Mbps/50Mbps
[4K(16:9)] 3840 x 2160 59.94p/50p/29.97p/25p/24p/23.98p 720Mbps/360Mbps/200Mbps/100Mbps/50Mbps
[Full HD(17:9)] 2048 x 1080 59.94p/50p/29.97p/25p/24p/23.98p 720Mbps/360Mbps/200Mbps/100Mbps/50Mbps
[Full HD(16:9)] 1920 x 1080 59.94p/50p/29.97p/25p/24p/23.98p 720Mbps/360Mbps/200Mbps/100Mbps/50Mbps
[Full HD(17:9) High speed rec.] 2048 x 1080 240p/200p/120p/100p 720Mbps(recording)/360Mbps(recording)/200Mbps(recording)
[Full HD(16:9) High speed rec.] 1920 x 1080 240p/200p/120p/100p 720Mbps(recording)/360Mbps(recording)/200Mbps(recording)
*For recording movies, use a CFexpress Type B card or SD memory card with UHS Speed Class 3 or higher.
*For recording movies in 360Mbps, use a CFexpress Type B card or SD memory card with Video Speed Class 60 or higher.
*For recording movies in 720Mbps, use a CFexpress Type B card or SD memory card with Video Speed Class 90 or higher.
*Selectable bitrate will be changed depends on the setting.
*Apple ProRes codec can be only recorded to CFexpress Type B card
*Bitrate for Apple ProRes codec is not selectable.
*Recording time can become short depending on the temperature and/or shooting conditions |
| Film simulation mode |
19 modes (PROVIA/Standard, Velvia/Vivid, ASTIA/Soft, Classic Chrome, PRO Neg.Hi, PRO Neg.Std, Classic Neg., Nostalgic Neg., ETERNA/Cinema, ETERNA BLEACH BYPASS, ACROS, ACROS + Ye Filter, ACROS + R Filter, ACROS + G Filter, Black & White, Black & White + Ye Filter, Black & White + R Filter, Black & White + G Filter, Sepia) |
| Monochromatic Color |
Yes |
| Grain Effect |
Roughness |
STRONG, WEAK, OFF |
|
Size |
LARGE, SMALL |
| Color Chrome Effect |
STRONG, WEAK, OFF |
| Color chrome Blue |
STRONG, WEAK, OFF |
| Smooth Skin Effect |
STRONG, WEAK, OFF |
| Dynamic range setting |
Still |
AUTO / 100% / 200% / 400%
ISO restriction: DR100%: No limit?DR200%: ISO250 or more?DR400%: ISO500 or more |
|
Movie |
100% / 200% / 400%
ISO restriction: DR100%: No limit?DR200%: ISO250 or more?DR400%: ISO500 or more |
| White balance |
Auto |
White Priority / Auto / Ambience Priority |
|
Custom |
Custom1 - 3 |
|
Color temperature selection |
2500K-10000K |
|
Preset |
Daylight / Shade / Fluorescent Light-1 / Fluorescent Light-2 / Fluorescent Light-3 / Incandescent Light / Underwater |
| Clarity setting |
±5 steps |
| Self-timer |
10sec. / 2sec. |
| Interval timer shooting |
Yes (Setting : Interval, Number of shots, Starting time, Interval timer shooting exposure smoothing) |
| Wireless transmitter |
Standard |
IEEE802.11a/b/g/n/ac (standard wireless protocol) |
|
Encryption |
WPA/WPA2 mixed mode, WPA3 |
|
Access mode |
Infrastructure |
| Bluetooth® |
Standartd |
Bluetooth Ver. 4.2 (Bluetooth low energy) |
|
Operating frequency (Center frequency) |
2402 - 2480MHz |
| Terminal |
Digital interface |
USB Type-C (USB3.2 Gen2x1) |
|
HDMI output |
HDMI connector (Type A) |
|
Others |
ø3.5mm, stereo mini connector (Microphone)
ø3.5mm, stereo mini connector (Headphone)
ø2.5mm, Remote Release Connector
Hot shoe
Synchronized terninal |
| Power supply |
NP-W235 Li-ion battery (included) |
|
Battery life for still images*2 |
Economy Mode: Approx. 680 frames
Normal Mode: Approx. 540 frames
*When XF35mmF1.4 R is set |
|
Actual battery life of movie capture*2 |
8K: Approx. 70min. (29.97p)
4K: Approx. 75min. (59.94p)
Full HD: Approx. 85min. (59.94p), Approx. 90min. (120P)
*Face detection is set to OFF |
|
Continuance battery life of movie capture*2 |
8K: Approx. 100min. (29.97p)
4K: Approx. 120min. (59.94p)
Full HD: Approx. 140min. (59.94p)
*Face detection is set to OFF |
| Dimensions |
Width: 136.3mm
Height: 92.9mm
Depth: 84.6mm
(Minimum Depth: 42.8mm) |
| Weight |
including battery and memory card: Approx. 660g
excluding battery and memory card: Approx. 579g |
| Operation Environment |
Operating Temperature |
-10? - +40? |
|
Operating Humidity |
10% - 80% (no condensation) |
| Starting up period |
Approx. 0.49sec. |
| Accessories included |
Li-ion battery NP-W235
AC power adapter AC-5VJ
Plug adapter
USB cable
Shoulder strap
Body cap
Hot shoe cover
File transmitter/vertical battery grip connector cover
Memory card slot cover
Sync terminal cover
Cooling fan connector cover
Cable protector
Owner's manual |
